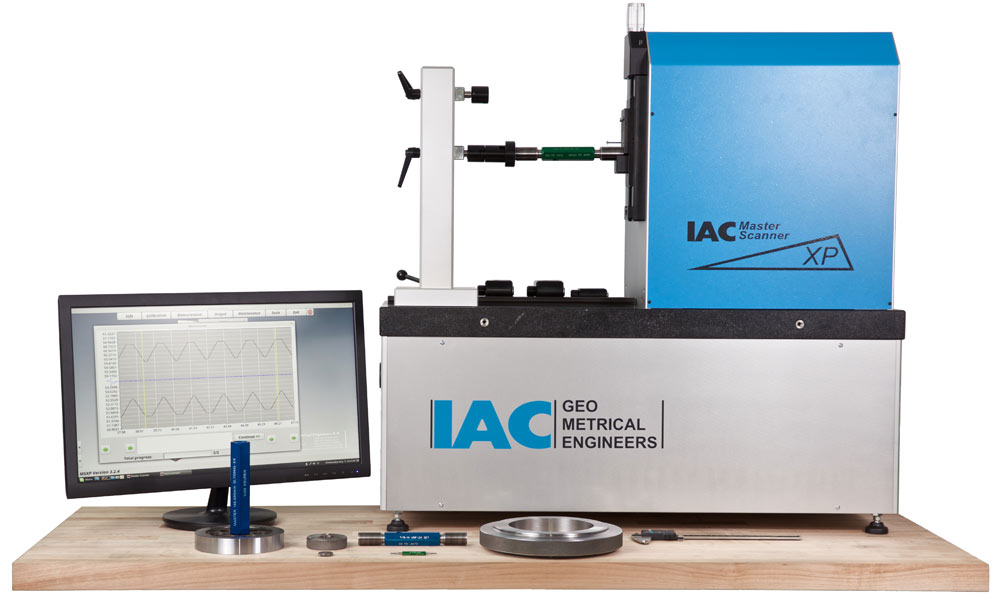

MSXP Series
- External measuring range: 1.0~50/90mm (model dependent)
- Internal measuring range: 2.5~60/100mm (model dependent)
- Max measuring length: 25mm or 60mm (model dependent)
- Min thread pitch: 0.1mm
- Weight: 150kg
- Granite bed of 900x350mm
- Horizontal/Vertical guidance: Precision air bearing
- Driving type: Swiss Brushless motor
- Measuring system: Heidenhain incremental linear encoder system
- Resolution: 0.01μm
- Interface box with cables
- Click'On quick-change system,
- Industrial Control Computer
- keyboard, mouse, flat screen
- Calibration Certificates of the purchased standards
- Laser calibration Certificates of the machine axis
- MSProg LINUX software package (Multi-Language)
- IACLIB, standajrd tolerance library
- 1 year warranty after inspection acceptance by the customer
- 1 year of free updates of the MSProg and purchased modules
このコンテンツは、全てのプロダクトページに共有されます。
Introducing the Masterscanner MSXP Series, a fully automated measurement solution that operates without any human involvement. In less than two minutes, the machine provides a comprehensive display of all measured thread parameters for each pitch. The system automatically generates a measurement report by comparing the collected data against its integrated library of thread standards. The MasterScanner minimizes the potential for human error while enhancing measurement efficiency, quality, consistency, and accuracy. It adheres to all traceability requirements outlined in ISO-9000 and ISO/IEC 17025:2017.
Obtain detailed measurements for cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges, and various other gauges with internal and external dimensions. This includes virtual pitch diameter, single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half thread angle, flank straightness, lead angle, taper, perpendicularity, and more.
