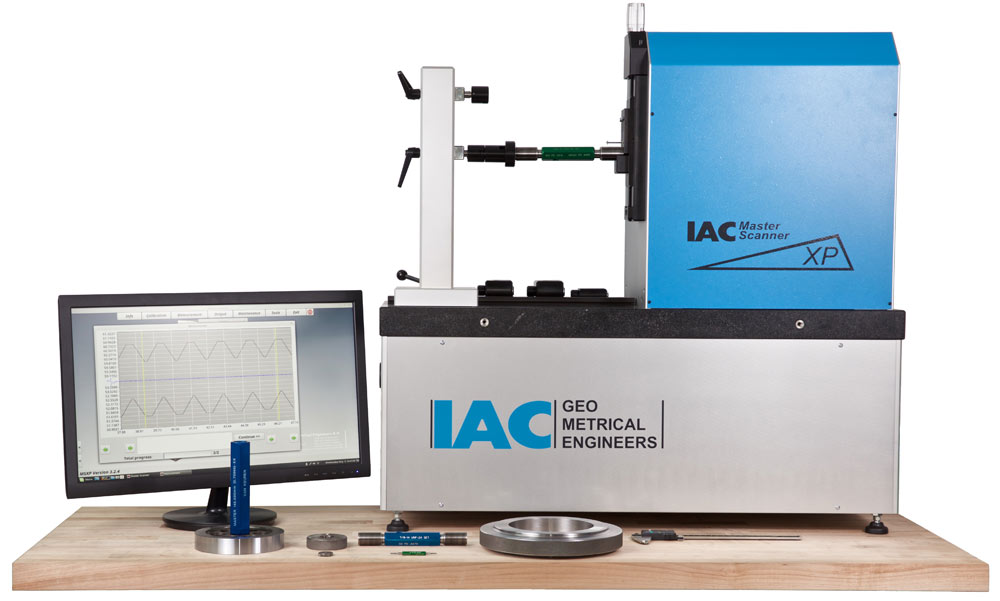

MSXP Series
- Externí měřicí rozsah: 1,0~50/90 mm (závisí na modelu)
- Interní měřicí rozsah: 2,5~60/100 mm (závisí na modelu)
- Max. měřená délka: 25 mm nebo 60 mm (závisí na modelu)
- Minimální stoupání závitu: 0,1 mm
- Hmotnost: 150 kg
- Žulové lože 900x350 mm
- Horizontální/vertikální vedení: Přesné vzduchové ložisko
- Typ pohonu: Švýcarský bezkartáčový motor
- Měřicí systém: Inkrementální lineární enkodér Heidenhain
- Rozlišení: 0,01 μm
- Rozhraní s kabely
- Systém rychlé výměny Click'On,
- Průmyslový řídicí počítač
- klávesnice, myš, plochá obrazovka
- Kalibrační certifikáty zakoupených standardů
- Kalibrační certifikáty laseru osy stroje
- Softwarový balíček MSProg LINUX (vícejazyčný)
- IACLIB, knihovna tolerancí norem
- 1 rok záruka po schválení kontrolou zákazníkem
- 1 rok bezplatných aktualizací MSProg a zakoupené moduly
Tento obsah bude sdílen na všech produktových stránkách.
Introducing the Masterscanner MSXP Series, a fully automated measurement solution that operates without any human involvement. In less than two minutes, the machine provides a comprehensive display of all measured thread parameters for each pitch. The system automatically generates a measurement report by comparing the collected data against its integrated library of thread standards. The MasterScanner minimizes the potential for human error while enhancing measurement efficiency, quality, consistency, and accuracy. It adheres to all traceability requirements outlined in ISO-9000 and ISO/IEC 17025:2017.
Obtain detailed measurements for cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges, and various other gauges with internal and external dimensions. This includes virtual pitch diameter, single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half thread angle, flank straightness, lead angle, taper, perpendicularity, and more.
