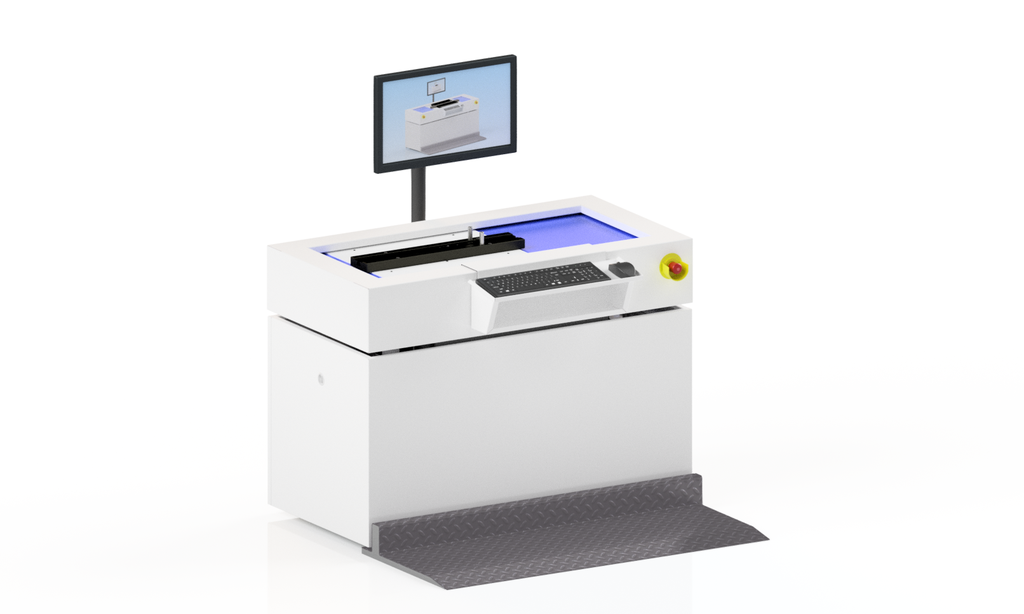

XPL-C Series

https://www.iac-instruments.com/web/image/product.template/1356/image_1920?unique=35d60b6


- 외부 측정 범위: 1.0~190/290mm(모델에 따라 다름)
- 내부 측정 범위: 2.5~200/300mm(모델에 따라 다름)
- 최대 측정 길이: 100mm 또는 200mm(모델에 따라 다름)
- 최소 나사산 피치: 0.1mm
- 무게: 620kg
- 화강암 베드
- 수평/수직 가이드: 정밀 에어 베어링
- 구동 방식: 스위스 브러시리스 모터
- 측정 시스템: 하이덴하인 증분형 리니어 엔코더 시스템
- 분해능: 0.01μm
- 케이블이 포함된 인터페이스 박스
- Click'On 퀵 체인지 시스템
- 산업용 제어 컴퓨터
- 키보드, 마우스, 평면 스크린
- 구매 표준 교정 인증서
- 기계 축 레이저 교정 인증서
- MSProg LINUX 소프트웨어 패키지(다국어)
- IACLIB, 표준 공차 라이브러리
- 고객 검사 승인 후 1년 보증
- 1년 무료 업데이트 MSProg 및 구매한 모듈

Login to see price

판매 불가


  • MasterScanner XPL-C Model
  • Max. Scan Length
  • Temperature Compensation
  • Active Anti-Vibration Damping System

이 조합은 존재하지 않습니다.


Masterscanner XPL-C Series Full-automated measurement, without human intervention, the machine displays all measured thread parameters per pitch in under 2 minutes. All measured values are compared with the built-in thread standards library, the system generates the measuring report automatically. The MasterScanner significantly reduces human error, as well as improves the measuring efficiency, quality, consistency and accuracy of the results. The MasterScanner is compliant with all requirements
for tractability of today as stated in ISO-9000 and ISO/IEC 17025:2017.

Get all parameters of cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges and other gauges with internal & external dimensions, including virtual pitch diameter , single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half of thread angle, flank straightness, lead angle, taper, perpendicularity, etc.

Dimensions_XPL-C.pdf
Download
Floorplan_Dimensions_XPL-C.pdf
Download
IAC_Brochure_XPL-C_Series_(English).pdf
Download
MEASURING UNCERTAINTY:
XPL-C MODELSXPL-C-200XPL-C-300
Thread ring gauges, parallel or tapered (minor diameter > 10mm, partial flank angles ≥ 27º)
Minor diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Effective pitch diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”
Taper0,1°0,1°
Thread ring gauges, parallel or tapered (minor diameter 2,5 to 10 mm, partial flank angles ≥ 27º)
Minor diameter3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι
Effective pitch diameter3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”
Taper0,1°0,1°
Thread plug gauges, parallel or tapered (major diameter > 1 mm, partial flank angles ≥ 27º)
Minor diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Effective pitch diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”
Taper0,1°0,1°
Plain gauges, parallel or tapered (Diameter > 10 mm)
Plain ring gauge2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι
Plain plug gauge2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι
Taper0,1°0,1°
Plain cylindrical or Taper gauge (Diameter from 1mm to 10mm)
Plain ring gauge3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Plain plug gauge3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Taper0,1°0,1°
