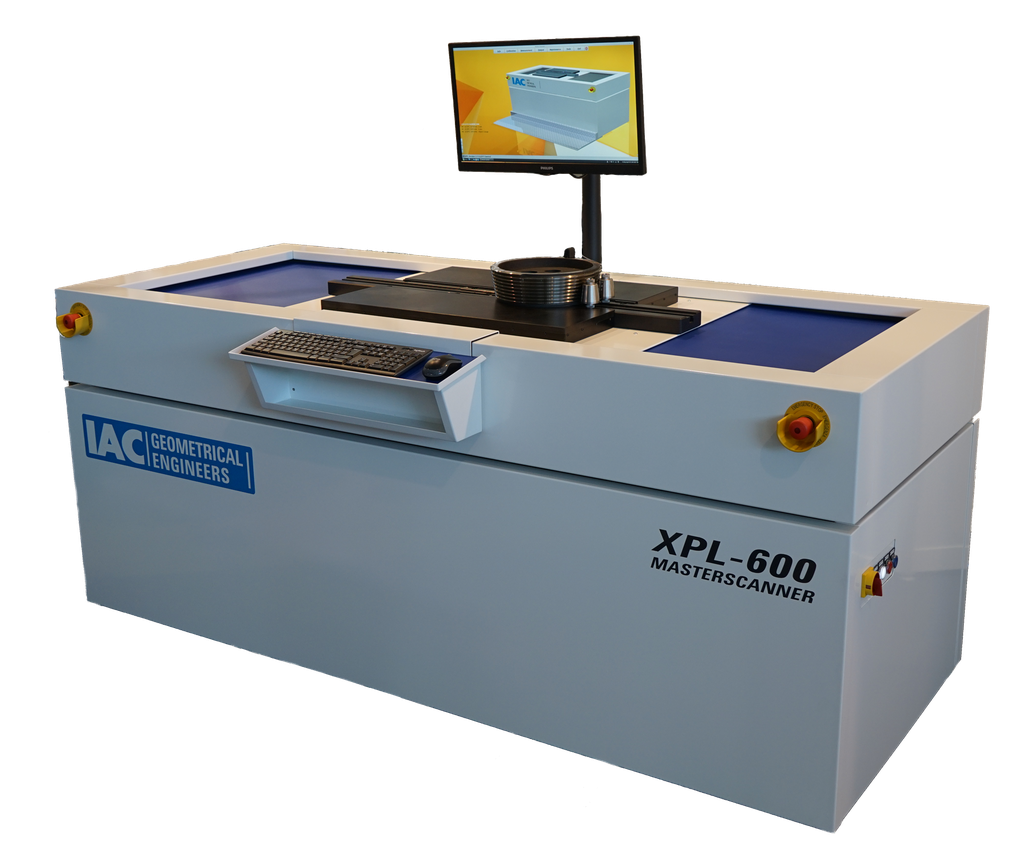

XPL Series

https://www.iac-instruments.com/web/image/product.template/1363/image_1920?unique=f95a949

XPL series for large thread sizes specially manufactured to supply: Gage manufacturers, Oil-, Gas-, Military- and or Aerospace -Industry.

GET A QUOTE

Pas disponible à la vente


  • Max. Scan Length
  • Max. Diameter
  • Temperature Compensation
  • Active Anti-Vibration Damping System

Cette combinaison n'existe pas.

Temperature Compensation: Included
Active Anti-Vibration Damping System: Included


Special manufactured to supply: Gage manufacturers, Oil-, Gas-, Military- and or Aerospace -Industry.

Masterscanner XPL Series Full-automated measurement, without human intervention, the machine displays all measured thread parameters per pitch in under 2 minutes. All measured values are compared with the built-in thread standards library, the system generates the measuring report automatically. The MasterScanner significantly reduces human error, as well as improves the measuring efficiency, quality, consistency and accuracy of the results. The MasterScanner is compliant with all requirements
for tractability of today as stated in ISO-9000 and ISO/IEC 17025:2005.

Get all parameters of cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges and other gauges with internal & external dimensions, including virtual pitch diameter , single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half of thread angle, flank straightness, lead angle, taper, perpendicularity, etc.

Floorplan_Dimensions_XPL400.pdf
Download
Floorplan_Dimensions_XPL500_600.pdf
Download
IAC_Product_Brochure_XPL_400_500_600.pdf
Download
MEASURING UNCERTAINTY:
XPL MODELSXPL-400XPL-500XPL-600
Thread ring gauges, parallel or tapered (minor diameter > 10mm/0,4 in, partial flank angles ≥ 27º)
Minor diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Effective pitch diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”0°6’0”
Taper0,1°0,1°0,1°
Thread ring gauges, parallel or tapered (minor diameter 2,5 to 10 mm / 0,1 to 0,4 in, partial flank angles ≥ 27º)
Minor diameter3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι
Effective pitch diameter3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι3,5 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”0°6’0”
Taper0,1°0,1°0,1°
Thread plug gauges, parallel or tapered (major diameter > 1 mm / 0,04 in, partial flank angles ≥ 27º)
Minor diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Effective pitch diameter3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Thread pitch1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι1,0 μm + 5.10-6·ι
Flankangles (right and left side)0°6’0”0°6’0”0°6’0”
Taper0,1°0,1°0,1°
Plain gauges, parallel or tapered (Diameter > 10 mm / 0,4 in)
Plain ring gauge2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι
Plain plug gauge2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι
Taper0,1°0,1°0,1°
Plain cylindrical or Taper gauge (Diameter from 1mm to 10mm / 0,04 to 0,4 in)
Plain ring gauge3,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Plain plug gauge3,0 μm + 5.10-6·ι2,0 μm + 5.10-6·ι3,0 μm + 5.10-6·ι
Taper0,1°0,1°0,1°
